L181x W85x H46mm
WDS150 series 120W~180W
Desk-Top Adapter
Power Saving Standard Mode High Performance / Single Output
FEATURE
- 90 to 264 VAC universal input
- Low ripple & noise
- Short circuit protection
- Over voltage protection
- Power saving ≤ 0.21W at 110VAC / 230VAC
- Power factor correction > 0.9 at full load

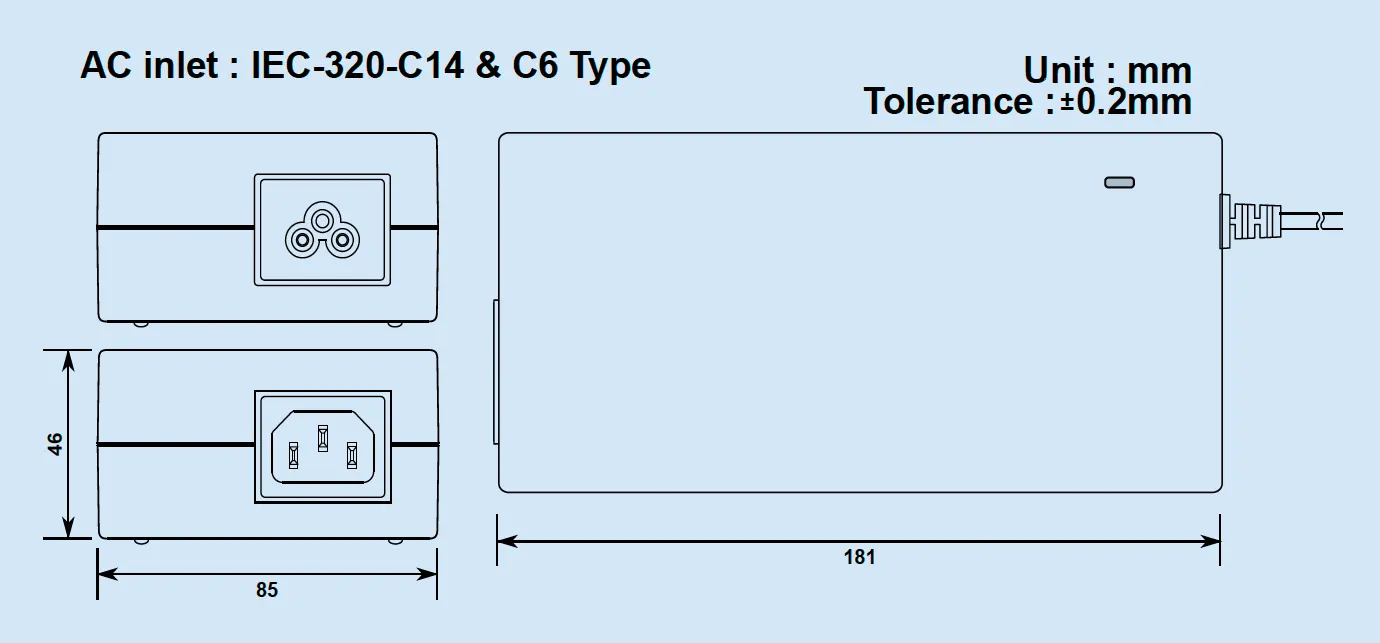

DIMENSION
L181x W85x H46mm (Max.)
GENERAL SPECIFICATION
- Efficiency: 85% type at full load
- Hold-up time: 8ms at full load, (115V)
- Inrush current: 60A / 230 VAC
- Withstand voltage: 1500 VAC, input to Output
- MTBF: 100,000 hours
- Burn-in: 100% for all shipped units
- EMI requirements: Meets conduction limits of a) FCC Class B b) CISPR Class B
- Safety requirements: Approval a) UL 62368 b) EN 62368
ENVIRONMENTAL
- Operating temperature: 0℃ ~ +40℃
- Operating humidity: 20% ~ 85%
- Storage temperature: -40℃ ~ +70℃
- Storage humidity: 10% ~ 95%
Output Voltage / Current Rating Chart
| Model Name | Output Wattage | Output Voltage | Output Current |
|---|---|---|---|
| WDS120120 | 120W | 12V | 10A |
| WDS132120 | 132W | 12V | 12.5A |
| WDS150120 | 150W | 12V | 7.5A |
| WDS120240 | 120W | 24V | 5A |
| WDS132240 | 132W | 24V | 5.5A |
| WDS150240 | 150W | 24V | 6.25A |
| WDS180240 | 180W | 24V | 7.5A |
Swipe to view full table
Safety application : 40℃ Ambient temperature
★ Global Safety Compliance
