L116x W51.8x H33.5mm
HAS065XX3F series 48W~65W
Desk-Top Adapter
SINGLE OUTPUT / Power Saving Standard Mode High Performance
FEATURE
- 90 to 264 VAC universal input
- High efficiency 80% typical
- High reliability
- Low ripple & noise
- Short circuit protection
- Over voltage protection
- Limited power source

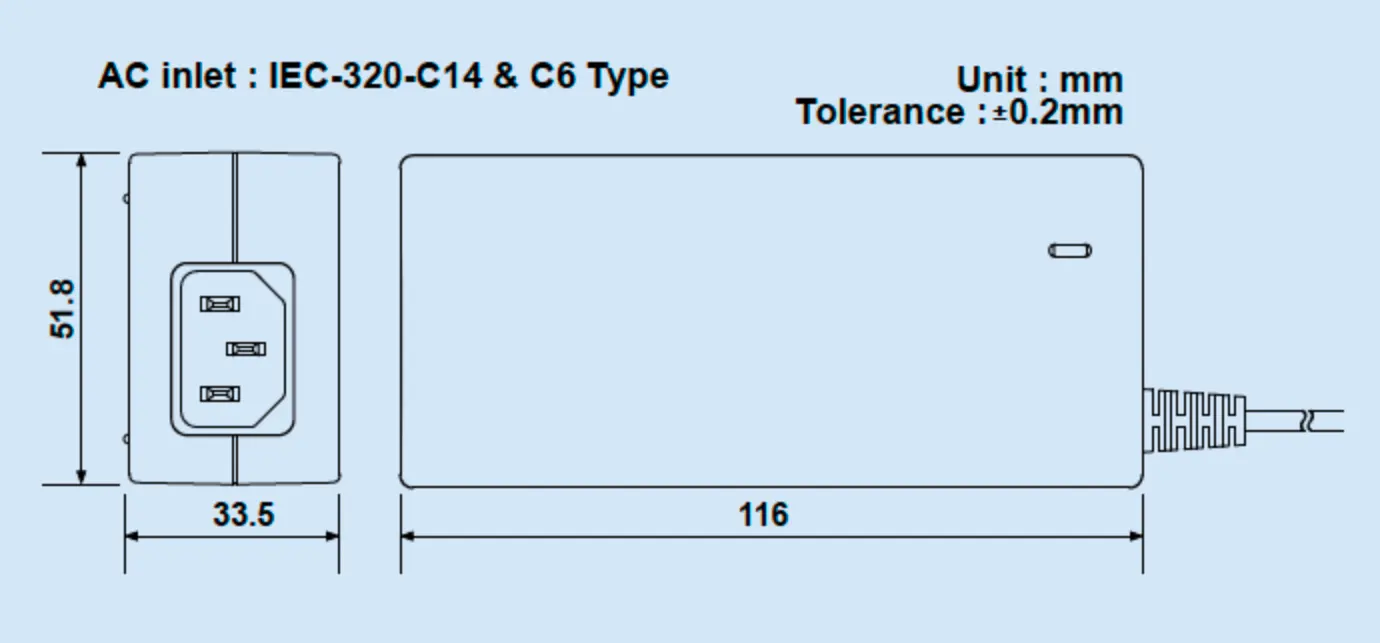

DIMENSION
L116x W51.8x H33.5mm (Max.)
ENVIRONMENTAL
- Operating temperature: 0℃ ~ +40℃
- Operating humidity: 20% ~ 85%
- Storage temperature: -40℃ ~ +70℃
- Storage humidity: 10% ~ 95%
- Hi-pot 1,500VAC 60sec. (P. to S.) class I
- MTBF > 50,000hrs at 25℃
Output Voltage / Current Rating Chart
| Model Name | Output Wattage | Output Voltage | Output Current |
|---|---|---|---|
| HAS050123F | 50.0W | 12.0V | 4.16A |
| HAS060123F | 60.0W | 12.0V | 5.0A |
| HAS060153F | 60.0W | 15.0V | 4.0A |
| HAS048193F | 48.0W | 19.0V | 2.5A |
| HAS060193F | 60.0W | 19.0V | 3.16A |
| HAS048243F | 48.0W | 24.0V | 2.0A |
| HAS060243F | 60.0W | 24.0V | 2.5A |
| HAS060303F | 60.0W | 30.0V | 2.0A |
| HAS060483F | 60.0W | 48.0V | 1.25A |
| HAS065543F | 65.0W | 54.0V | 1.2A |
| HAS065563F | 65.0W | 56.0V | 1.16A |
Swipe to view full table
Approval standard : UL62368, EN62368
Safety application : 40℃ Ambient temperature
★ Global Safety Compliance
