L75*W55*H34.5mm
HAS024 series 10~24 W
Wall Mount Adapter
SINGLE OUTPUT / AC/DC Switching Adapter High Performance
FEATURE
- Universal Input Voltage 90 to 264VAC
- High Efficiency 80% typical
- High Reliability
- Low Ripple & Noise
- Short Circuit Protection
- Over Voltage Protection
- Limited Power Source

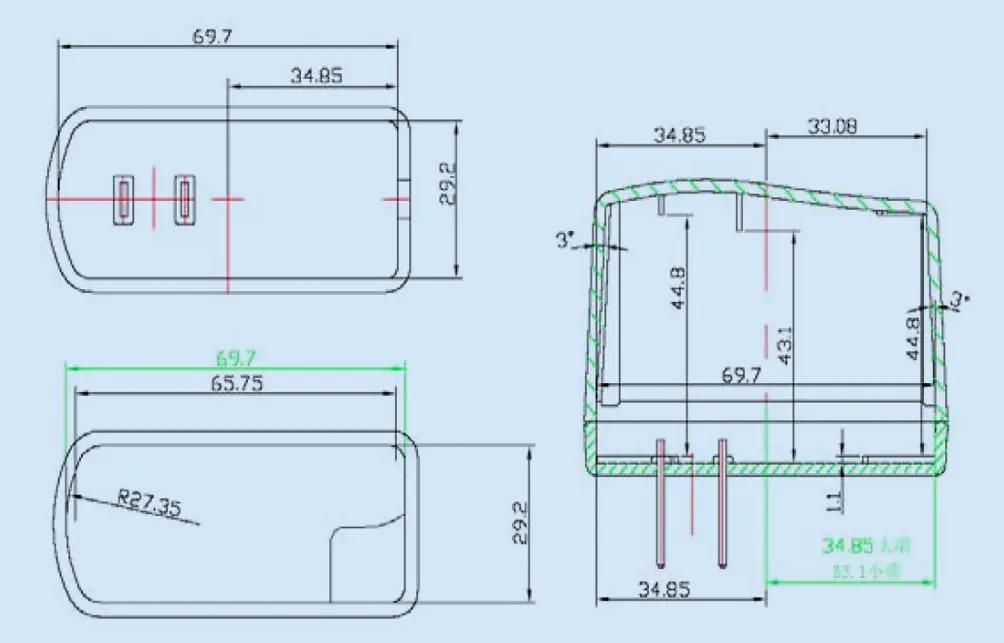

DIMENSIONS
L75*W55*H34.5mm (Max.)
AC Plug Type: With US / EU / UK / AA
ENVIRONMENTAL
- Operating Temperature: 0℃ ~ +40℃
- Operating Humidity: 20% ~ 85%
- Storage Temperature: -40℃ ~ +70℃
- Storage Humidity: 10% ~ 95%
- Hi-Pot: 3,000VAC 1Sec. (P. to S.) for class II
- MTBF > 50,000Hrs at 25℃
Output Voltage / Current Rating Chart
| Model Name | Output Wattage | Output Voltage | Output Current | Application |
|---|---|---|---|---|
| HAS010052Z-ZZ | 10W | 5V | 2A | External enclosure, Set-Top Box, Telecom, POS, DVD player...etc. |
| HAS015052Z-ZZ | 15W | 5V | 3A | |
| HAS02009Z-ZZ | 19.8W | 9V | 2.2A | |
| HAS01512Z-ZZ | 15W | 12V | 1.25A | |
| HAS02412Z-ZZ | 24W | 12V | 2A | |
| HAS01215U-Y1 | 12W | 15V | 0.8A |
Swipe to view full table
Approval standard : UL60950, EN60950.
Safety application : 40℃ Ambient temperature
★ Global Safety Compliance
