L150x W71x H25.5mm
ASS-132 series 82W~132W
Desk-Top Adapter
Power Saving Standard Mode High Performance / SINGLE OUTPUT / SLIM TYPE
FEATURE
- 90 to 264 VAC universal input
- High efficiency 89% typical
- High reliability
- Low ripple & noise
- Short circuit protection
- Over voltage protection
- Limited power source

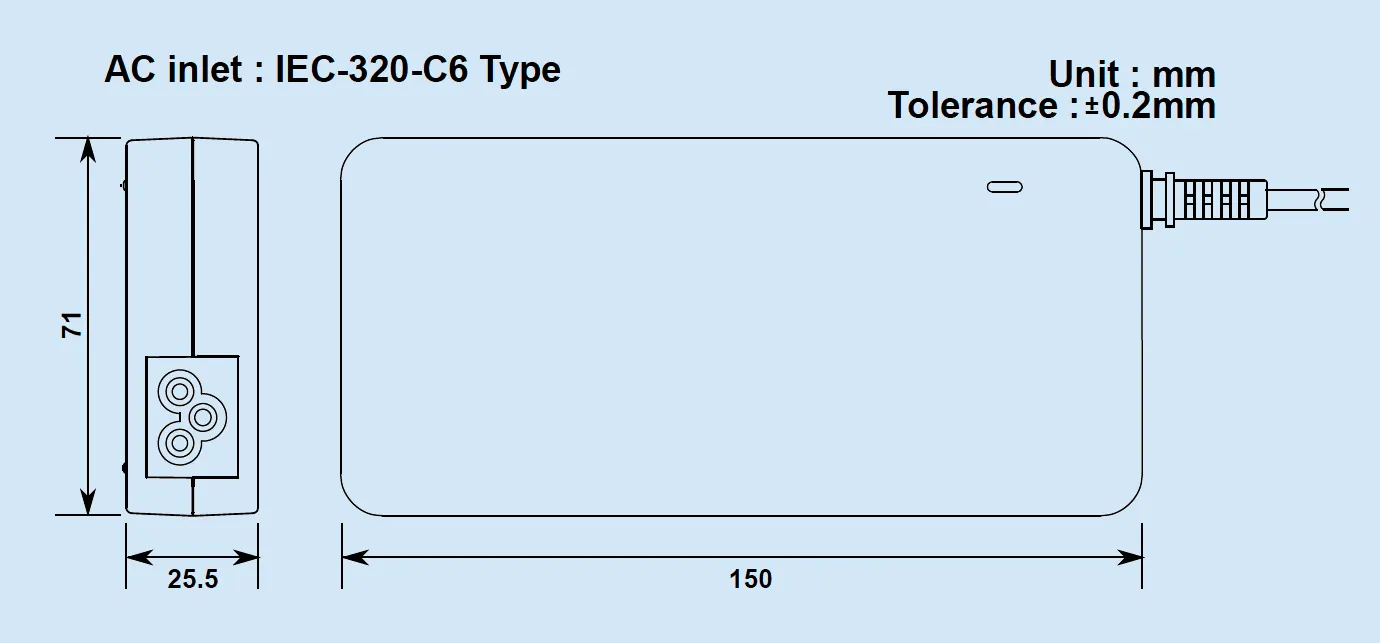

DIMENSION
L150x W71x H25.5mm (Max.)
AC INLET IEC-320-C6 ONLY
ENVIRONMENTAL
- Operating temperature: -20℃ ~ +40℃
- Operating humidity: 20% ~ 85%
- Storage temperature: -40℃ ~ +70℃
- Storage humidity: 10% ~ 95%
- Hi-pot 1,800VAC 60sec. (P. to S.) class I
- MTBF > 50,000hrs at 25℃
Output Voltage / Current Rating Chart
| Model Name | Output Wattage | Output Voltage | Output Current |
|---|---|---|---|
| ASS-082-12 | 82W | 12V | 6.8A |
| ASS-090-12 | 90W | 12V | 7.5A |
| ASS-085-15 | 84W | 15V | 5.6A |
| ASS-120-19 | 120W | 19V | 6.3A |
| ASS-100-24 | 100W | 24V | 4.16A |
| ASS-120-24 | 120W | 24V | 5.0A |
| ASS-132-24 | 132W | 24V | 5.5A |
| ASS-100-54 | 100W | 54V | 1.85A |
| ASS-120-54 | 120W | 54V | 2.2A |
| ASS-120-56 | 120W | 56V | 2.14A |
Swipe to view full table
Approval standard : UL62368, EN62368
Safety application : 40℃ Ambient temperature
★ Global Safety Compliance
