L153x W55.1x H32.5mm
AMS-120 series 95W~120W
Desk-Top Adapter
Power Saving Standard Mode High Performance / SINGLE OUTPUT
FEATURE
- 90 to 264 VAC universal input
- Low ripple & noise
- Short circuit protection
- Over voltage protection
- Power saving ≤ 0.21W at 110VAC/230VAC
- Power factor correction > 0.95 at full load

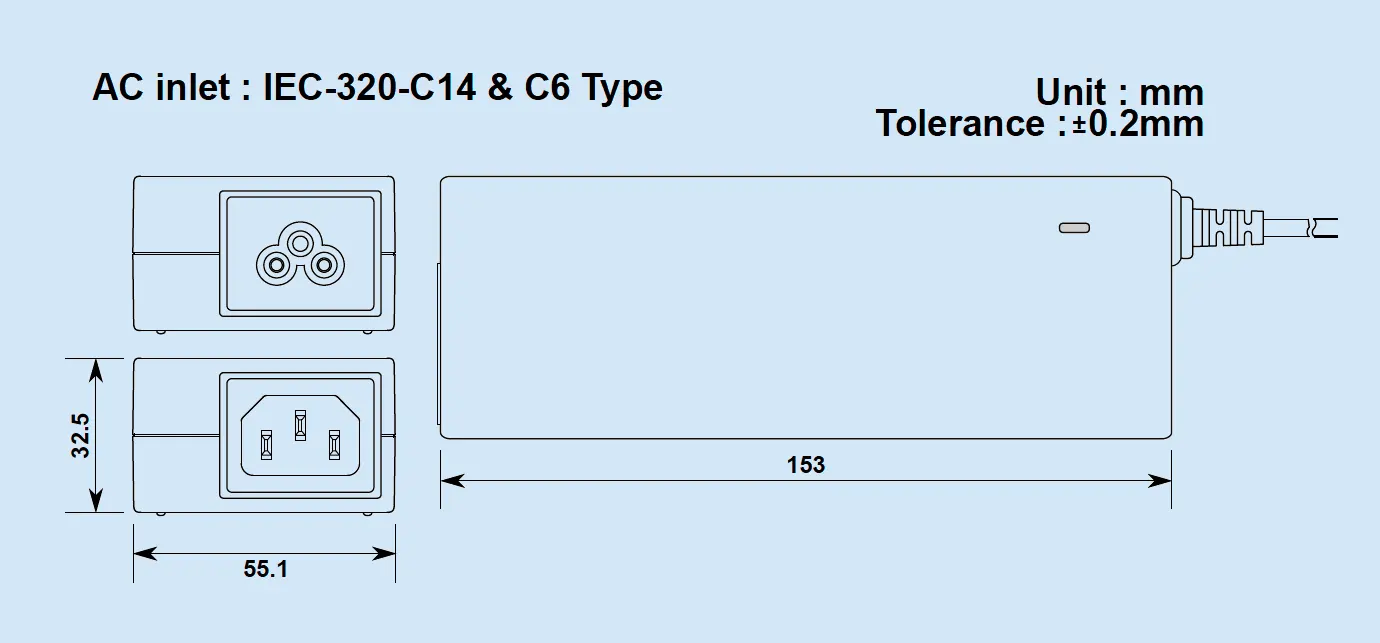

DIMENSION
L153x W55.1x H32.5mm (Max.)
GENERAL SPECIFICATION
- Efficiency: 88% type at full load
- Hold-up time: 8.3ms at full load, (100V)
- Inrush current: 80A / 240 VAC
- Withstand voltage: 1500 VAC, input to output
- MTBF: 50,000 hours
- Burn-in: 100% for all shipped units
- EMI requirements: Meets conduction limits of a) FCC class B b) CISPR class B
- Safety requirements: Approval a) UL 62368 b) EN 62368
ENVIRONMENTAL
- Operating temperature: 0℃ ~ +40℃
- Operating humidity: 20% ~ 85%
- Storage temperature: -40℃ ~ +70℃
- Storage humidity: 10% ~ 95%
Output Voltage / Current Rating Chart
| Model Name | Output Wattage | Output Voltage | Output Current |
|---|---|---|---|
| AMS-096-12 | 96W | 12V | 8A |
| AMS-108-12 | 108W | 12V | 9A |
| AMS-120-12 | 120W | 12V | 10A |
| AMS-105-15 | 105W | 15V | 7A |
| AMS-120-15 | 120W | 15V | 8A |
| AMS-095-19 | 95W | 19V | 5A |
| AMS-120-19 | 120W | 19V | 6.3A |
| AMS-100-24 | 100W | 24V | 4.2A |
| AMS-120-24 | 120W | 24V | 5A |
| AMS-120-30 | 120W | 30V | 4A |
Swipe to view full table
Safety application : 40℃ Ambient temperature
★ Global Safety Compliance
