L165x W67.4x H34.5mm
AMP-250 series 200W~250W
Desk-Top Adapter
Power Saving Standard Mode High Performance / SINGLE OUTPUT
FEATURE
- 90 to 264 VAC universal input
- Low ripple & noise
- Short circuit protection
- Over voltage protection
- Power saving ≤ 0.21W at 110VAC/230VAC
- Power factor correction > 0.95 at full load

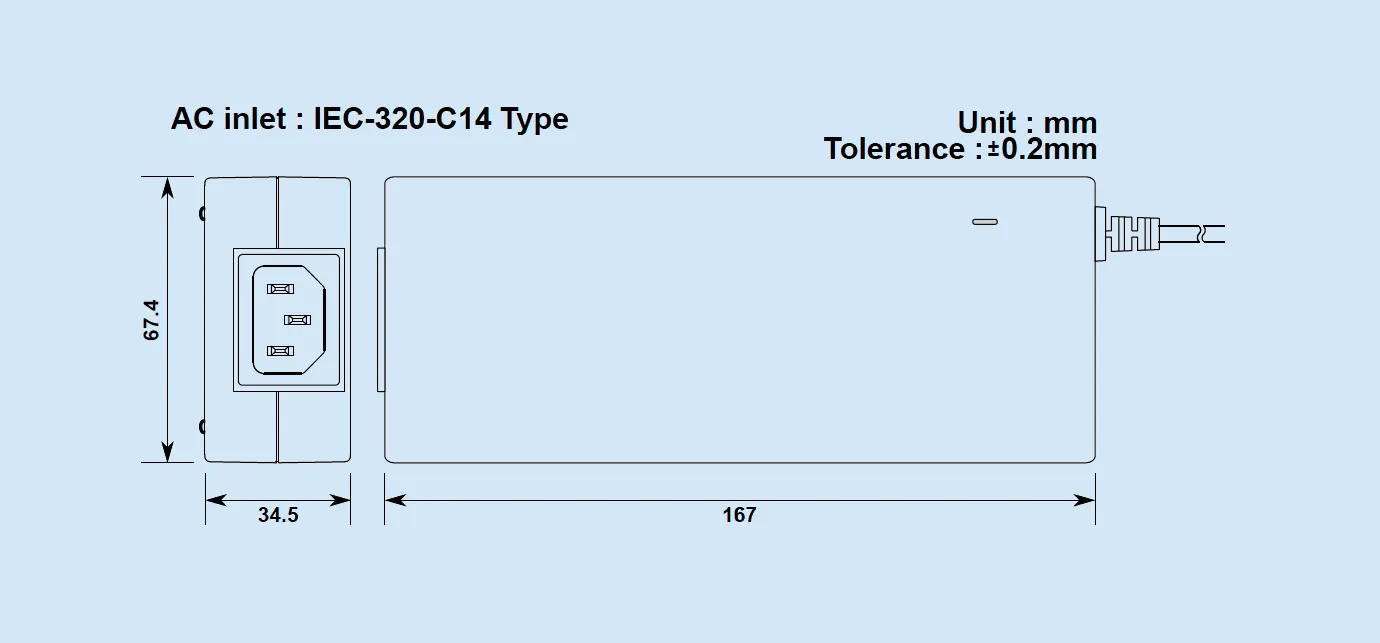

DIMENSION
L165x W67.4x H34.5mm (Max.)
GENERAL SPECIFICATION
- Efficiency: 92% type at full load
- Hold-up time: 8.3ms at full load, (100V)
- Inrush current: 80A / 230 VAC
- Withstand voltage: 2500 VAC, input to Output
- MTBF: 50,000 hours
- Burn-in: 100% for all shipped units
- EMI requirements: Meets conduction limits of a) FCC Class B b) CISPR Class B
- Safety requirements: Approval a) UL 62368 b) IEC 62368
ENVIRONMENTAL
- Operating temperature: 0℃ ~ +40℃
- Operating humidity: 20% ~ 85%
- Storage temperature: -40℃ ~ +70℃
- Storage humidity: 10% ~ 95%
Output Voltage / Current Rating Chart
| Model Name | Output Wattage | Output Voltage | Output Current |
|---|---|---|---|
| AMP-200-24 | 200W | 24V | 8.33A |
| AMP-240-40 | 240W | 40V | 6.0A |
| AMP-250-20 | 250W | 24V | 10.41A |
Swipe to view full table
Safety application : 40℃ Ambient temperature
★ Global Safety Compliance
