L103x W46x H27.2mm
AMB-036 series 25W~48W
Desk-Top Adapter
Power Saving Standard Mode High Performance / SINGLE OUTPUT
FEATURE
- 90 to 264 VAC universal input
- High efficiency 87% typical
- High reliability
- Low ripple & noise
- Short circuit protection
- Linited power source

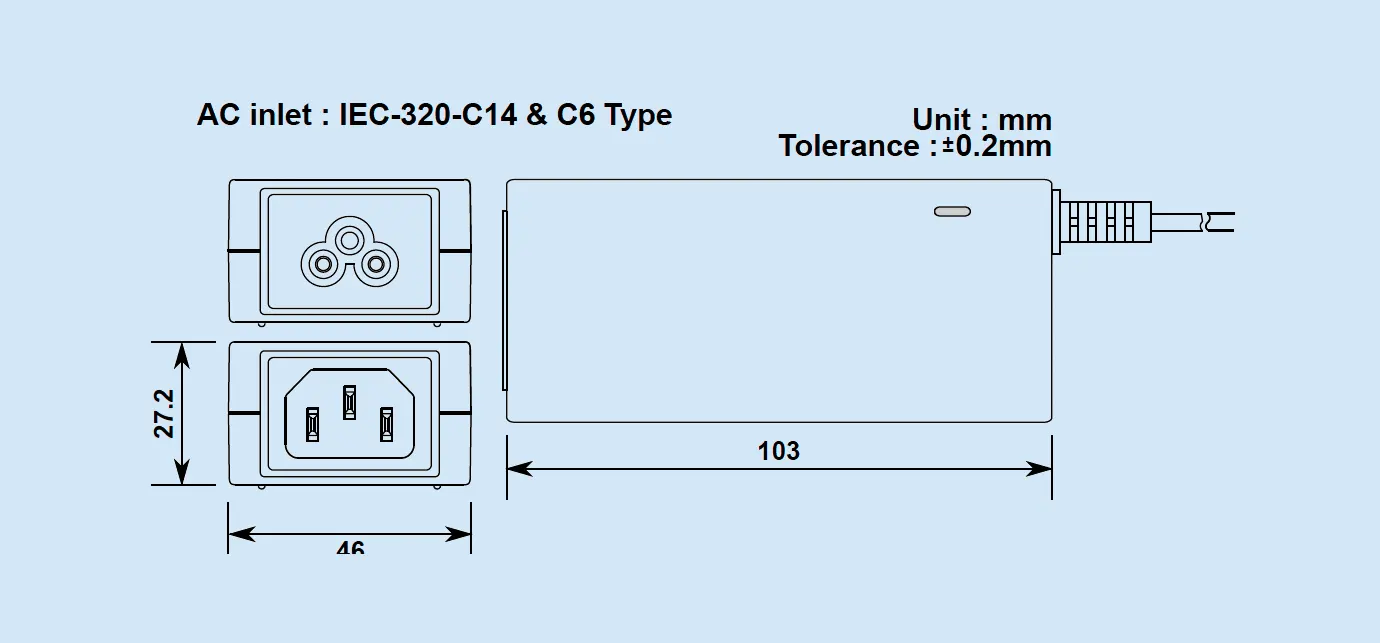

DIMENSION
L103x W46x H27.2mm (Max.)
ENVIRONMENTAL
- Operating temperature: 0℃ ~ +40℃
- Operating humidity: 20% ~ 85%
- Storage temperature: -40℃ ~ +70℃
- Storage humidity: 10% ~ 95%
- Hi-pot 1,500VAC 60sec. (P. to S.) class I
- MTBF > 50,000hrs at 25℃
Output Voltage / Current Rating Chart
| Model Name | Output Wattage | Output Voltage | Output Current |
|---|---|---|---|
| AMB-025-25 | 25W | 5V | 5A |
| AMB-036-12 | 36W | 12V | 3A |
| AMB-042-12 | 42W | 12V | 3.5A |
| AMB-042-19 | 42W | 19V | 2.21A |
| AMB-048-24 | 48W | 24V | 2A |
Swipe to view full table
Approval standard : UL62368, EN62368
Safety application : 40℃ Ambient temperature
★ Global Safety Compliance
