L215x W115 x H30mm
RS-350 series 200W~350W
Switching Power Supply
Single Output
FEATURE
- 90 to 132 VAC / 180 to 264 VAC universal input (Manual transfer switch)[cite: 1]
- Low ripple & noise[cite: 1]
- Short circuit / Over voltage / Over temperature protection[cite: 1]
- Auto recovery mode[cite: 1]
- Cooling by built-in DC fan[cite: 1]
- Withstand voltage 3000 VAC
- 100% full load burn-in test

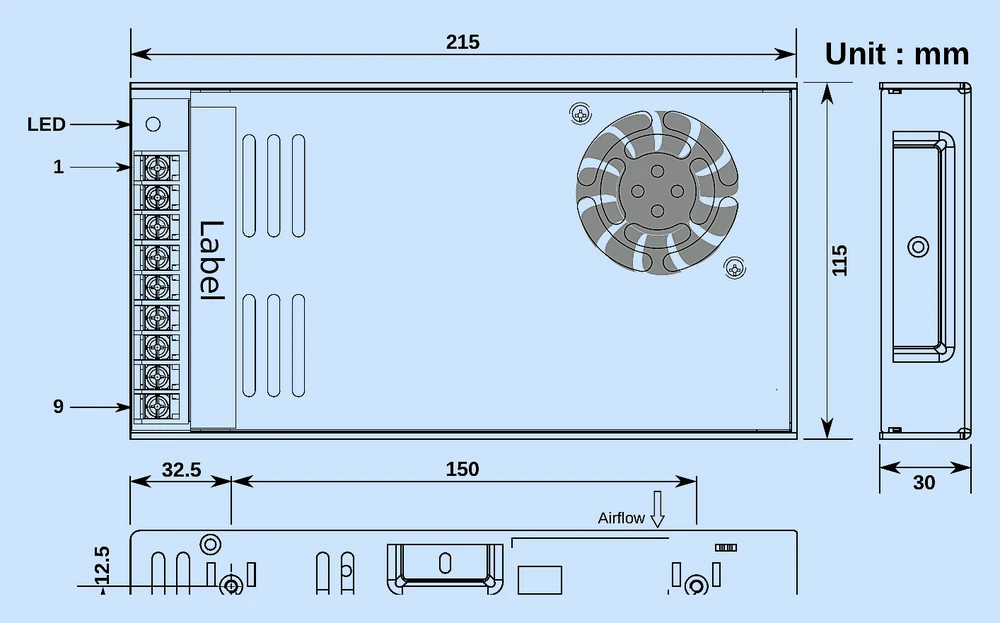

MECHANICAL DRAWING
Dimension : L215x W115 x H30mm
Pin assignment
| Pin no. | Function |
|---|---|
| 1 | +Vo |
| 2 | +Vo |
| 3 | +Vo |
| 4 | -Vo |
| 5 | -Vo |
| 6 | -Vo |
| 7 | ⏚ |
| 8 | AC(N) |
| 9 | AC(L) |
SPECIFICATION
| Model Name | RS-350-5 | RS-350-12 | RS-350-24 | RS-350-48 | |
|---|---|---|---|---|---|
| Input | Voltage | 90VAC~132VAC / 180VAC~264VAC (Munual transfer switch) | |||
| Frequency(Hz) | 47Hz~63Hz | ||||
| Inrush current | <60A(110VAC) <80A(220VAC) | ||||
| Output | Voltage | 5V | 12V | 24V | 48V |
| Current | 40A | 25A | 14.6A | 7.3A | |
| Voltage tolerance | 4.75V~5.25V | 11.4V~12.6V | 22.8V~25.2V | 45.6V~50.4V | |
| Ripple & Noise | 100mV | 120mV | 240mV | 480mV | |
| Max. output power (Forced air) | 200W | 300W | 350W | 350W | |
| Efficiency (typ.) | 80% | 80% | 83% | 86% | |
| Hold up time | ≥8ms @110VAC | ||||
| Setup, rise time | <2000ms, 20ms | ||||
| Protection | Over current | Auto recovery mode | |||
| Over voltage | Auto recovery mode | ||||
| Over temperature | Auto recovery mode | ||||
| Environment | Operating temperature | -10℃ ~ 60℃ | |||
| Storage temperature | -20℃ ~ 85℃ | ||||
| Humidity | 20% ~ 85% | ||||
| MTBF | >100,000hrs @25℃ (MIL-HDBK-217F) | ||||
| EMI requirements | CISPR32/EN 55032 class A | ||||
| Safety meet requirements | IEC/EN/UL62368-1, EN60335, GB4943 | ||||
| Dimension ( L x W x H mm ) | 215 x 115 x 30 mm (Tolerance : ±0.5mm) | ||||
| Power weight ( N.W. ) | 662.5g ± 2g | ||||
Swipe to view full table

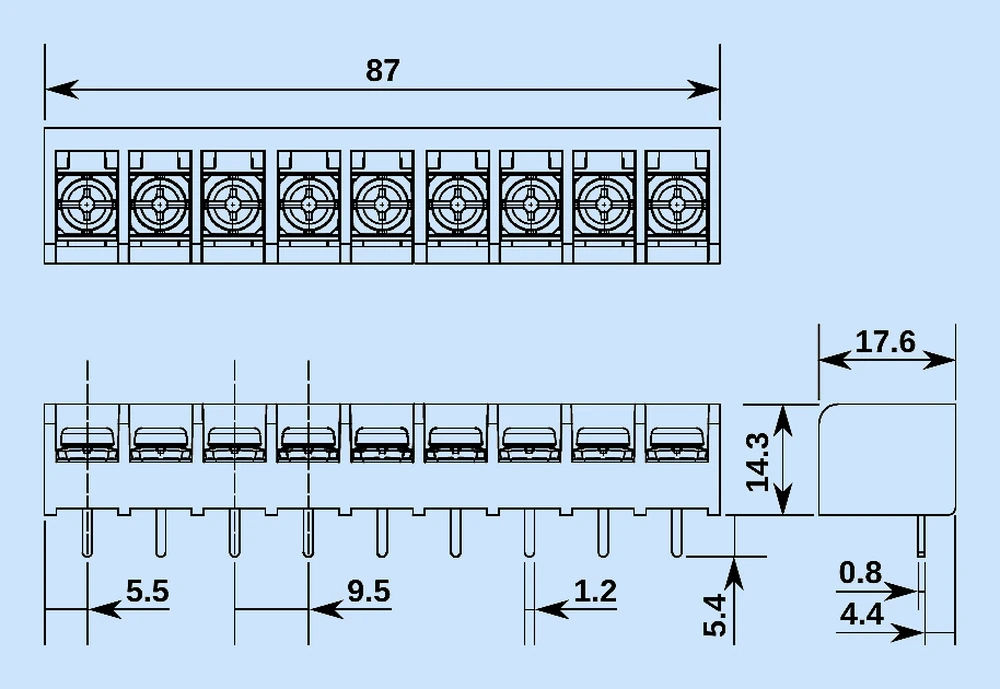

Screw terminal block

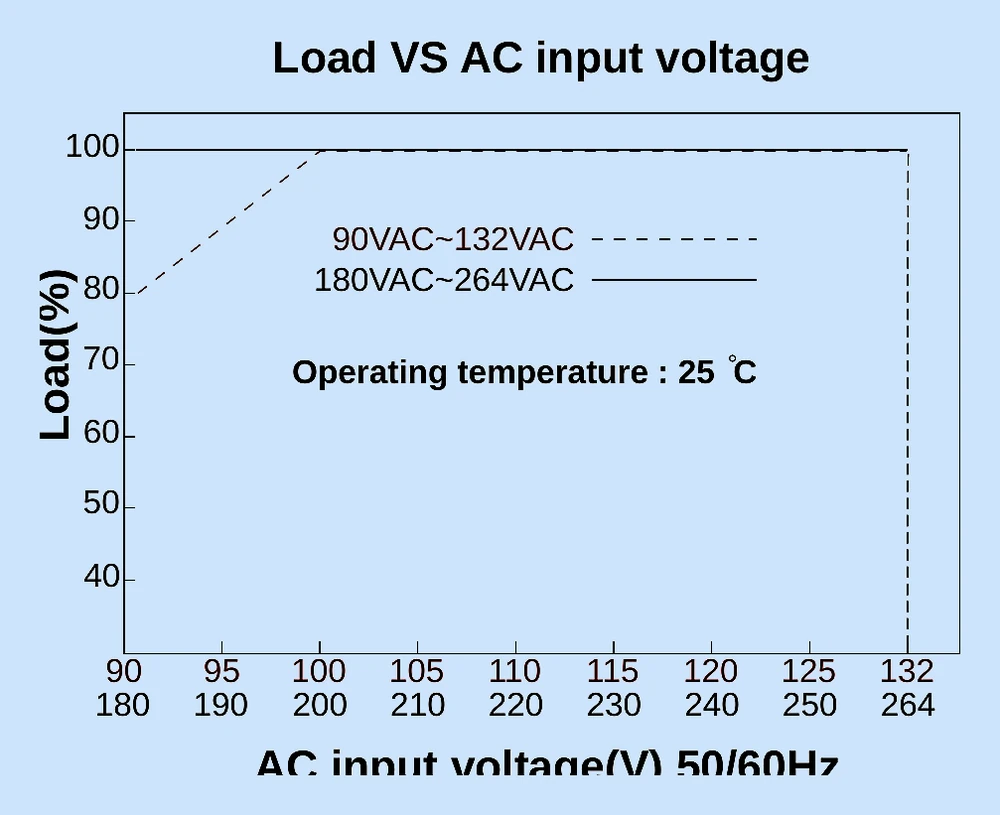

DE-RATING CURVE — Load VS AC input voltage

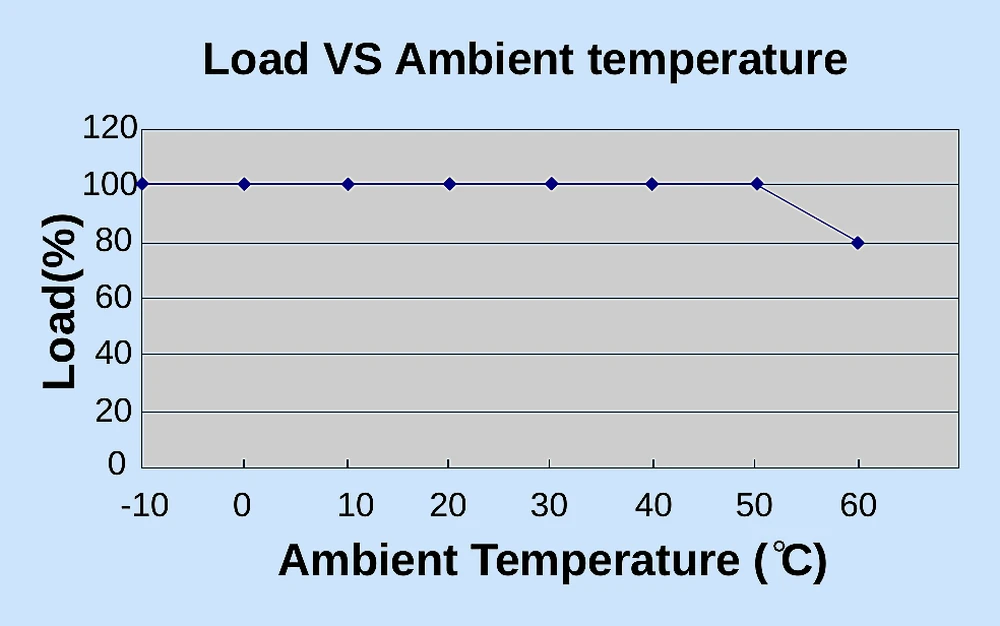

DE-RATING CURVE — Load VS Ambient temperature
